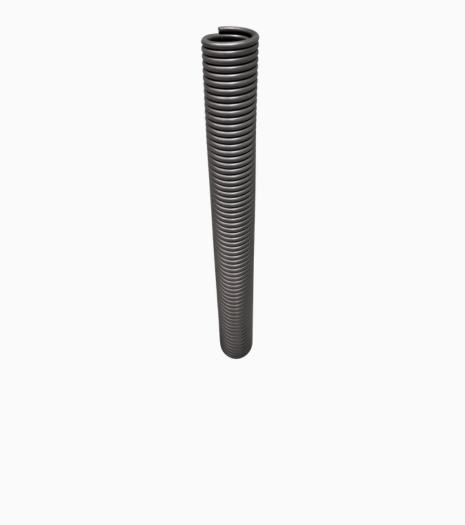

Hermans Verenfabriek HV-31581

HV-31581

Item code: HV-31581 Category: Default compression spring
€3.21

Drukveer met volgende specificaties

From 10 pieces €2.40
From 25 pieces €1.92
From 50 pieces €1.62
From 75 pieces €1.49
From 100 pieces €1.36
Larger quantities needed?
Mail us for a custom quote
  • Wire d: 0.50 mm
  • Inner diameter DI: 7.50 mm
  • Mean diameter DM: 8.00 mm
  • Total coils TW: 17.50
  • Active coils NW: 15.50
  • Free length L0: 98.60 mm
  • Rod Dd: 7.20 mm
  • Hole size Dh: 9.10 mm
  • Spring rate C: 0.07 N/mm
  • Loaded length Ln: 12.60 mm
  • Load at Ln Fn: 6.02 N
  • Material : AISI302 NS EN10270-3
  • +-DE ±DE: 0.35 mm
  • +-L0 ±L0: 4.68 mm
  • Outer diameter DE: 8.50 mm
